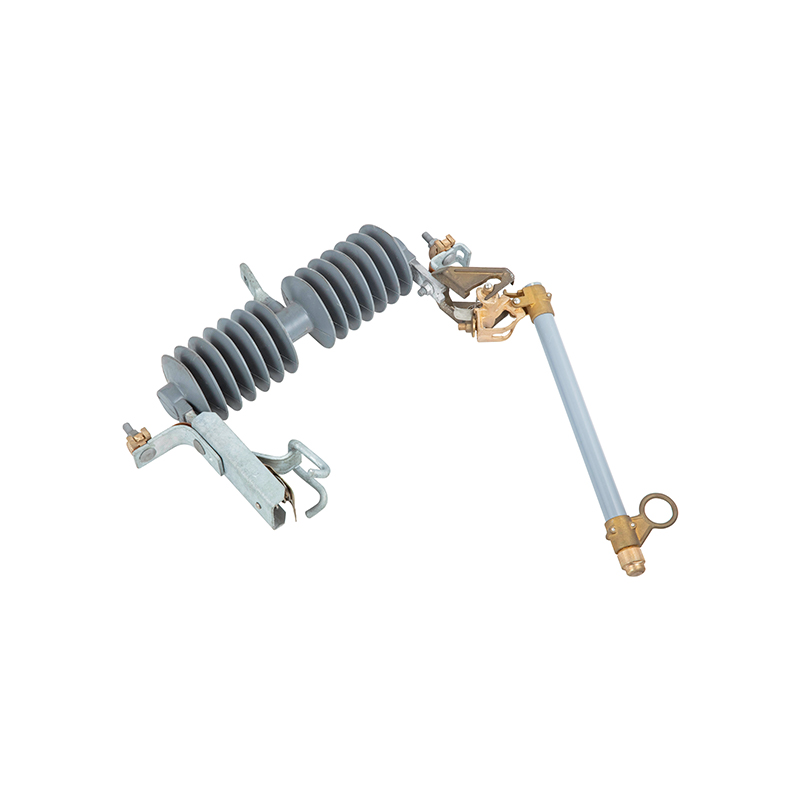

The 35kV Cutout Fuse is a protective electrical device designed to safeguard circuits against short-circuit faults or overcurrents. When such faults occur, the fuse element (or link) housed within the device melts due to the heat generated by the excessive current, thereby automatically interrupting the circuit and protecting power equipment from damage.
A composite insulator that fails in service rarely fails because the silicone housing was the wrong color. It fails because the fiberglass core inside it was selected, manufactured, or handled without enough attention to the details that actually control mechanical strength and ...
READ MOREAn overhead railway line is only as reliable as its least visible component. The railway insulator, often taken for granted, is the hard-working barrier that keeps high-voltage current in the catenary wire and away from masts, bridges and maintenance crews. Choosing the wrong in...
READ MOREAt 6:40 on a weekday morning, the 27.5 kV feeder inside a busy urban tunnel loses insulation. The pantograph drops, the train glides to a halt, and every service behind it stacks up. In most cases the failed component is not the feeder cable or the circuit breaker, but the railw...
READ MOREThe 35kV Cutout Fuse is a protective electrical device designed to safeguard circuits against short-circuit faults or overcurrents. When such faults occur, the fuse element housed inside the device melts from the heat generated by the excessive current, automatically interrupting the circuit and protecting power equipment from damage. Taizhou HuaDong Insulated Material Co., Ltd manufactures the 35kV Cutout Fuse as part of its cutout fuse line, positioned alongside the 24kV Cutout Fuse the company also produces.
A 35kV Cutout Fuse from Taizhou HuaDong is primarily used to protect critical equipment within power systems. In the event of a short circuit or severe overload affecting these devices, the fuse acts swiftly to interrupt the faulty circuit, preventing the fault from propagating and ensuring safe, stable operation of the entire power system.
Taizhou HuaDong builds its 35kV fuses so they can be selected for either outdoor or indoor installation, matched to the specific installation environment and operational requirements of the project. Every unit is structured around three key components working together to interrupt a fault safely.
The current-carrying link that melts once the thermal effect of an overcurrent reaches its melting point, breaking the circuit.
Effectively extinguishes the electric arc generated during the interruption of fault currents, preventing overvoltages that could cause secondary damage to the system.
Provides the mounting structure that holds the fuse element and arc-extinguishing tube in place for indoor or outdoor installation.
Taizhou HuaDong's 35kV Cutout Fuse is predominantly utilized in power transmission and distribution systems operating at 35kV and above. In practice, buyers install this fuse in three recurring settings.
When the current passing through a Cutout Fuse exceeds its rated value, the temperature of the fuse element rises due to the thermal effect of the current. Once the temperature reaches the melting point, the element fuses and the circuit is disconnected. At the same time, the fuse is equipped with arc-extinguishing material that quickly extinguishes the arc generated at the moment of disconnection, ensuring the circuit is broken safely.
Current exceeds the rated value and the fuse element heats up.
Temperature reaches the melting point and the circuit is disconnected.
Arc-extinguishing material quickly extinguishes the arc for a safe disconnection.
This mechanism gives the 35kV Cutout Fuse a simple structure, reliable action and low cost, which is why Taizhou HuaDong lists it as one of the commonly used and important protection devices supplied within its power systems product range.
It is primarily used to protect high-voltage transformers, high-voltage capacitor banks, power cables and electric motors from short-circuit faults and severe overloads.
Yes. It is typically designed for either outdoor or indoor installation, with the choice made based on the specific installation environment and operational requirements.
Its structure comprises a fuse element, an arc-extinguishing tube and a base, working together to interrupt fault current and extinguish the resulting arc.
Common applications include the protection of incoming and outgoing lines within substations, backup protection for main substation transformers, and protection of high-voltage capacitor banks.
The temperature of the fuse element rises due to the thermal effect of the current, and once it reaches the melting point the element fuses and disconnects the circuit while the arc-extinguishing material extinguishes the resulting arc.
A cutout fuse offers a simple structure, reliable action and low cost, which is why it remains one of the commonly used and important protection devices in power systems.
Backup protection means the 35kV cutout fuse is installed to interrupt the circuit if the transformer experiences a fault, supporting the main protection scheme for the substation.
Yes. Taizhou HuaDong manufactures both the 35kV Cutout Fuse and the 24kV Cutout Fuse within its cutout fuse product line.
